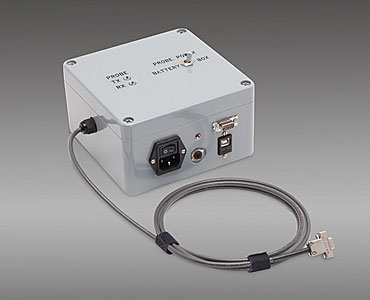

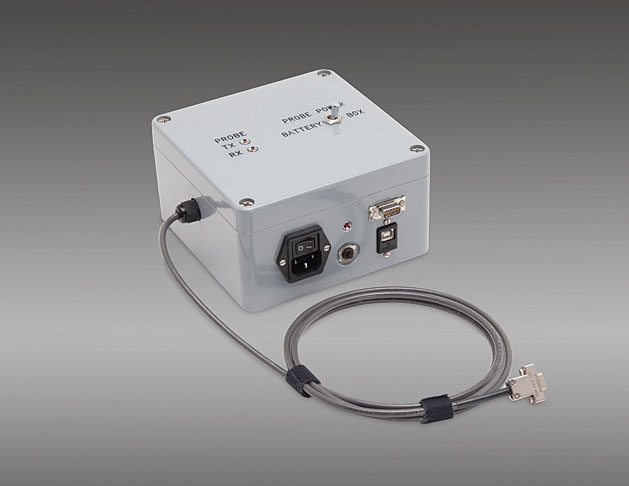

Electronic Multi-Shot Interface Box

Electronic Multi-Shot Interface BoxProvides power to the Electronic Multishot Probe and transfers data between the Probe and computer.


  • Physical dimensions:  6.3” X 6.3” X 3.5”

  • Operating temperature:  –20°C to 70°C

  • Internally protected against shock and vibration

  • Power filter with switch, 120/240 VAC, 50/60 Hz, 10W max

  • Compatible with Tensteer Electronic Multishot Probe and Tensor CHAMP Probe

  • USB and 9 pin serial connectors

  • Switch for powering Probe by Interface box or battery pack

  • Power and communications status shown on LED lamps
