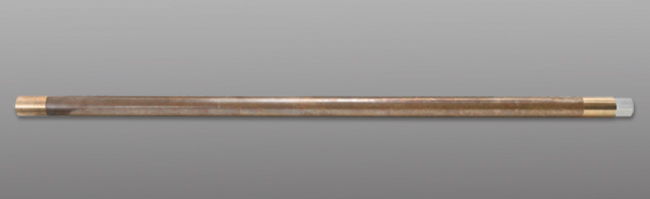

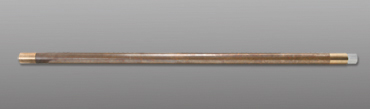

High Temperature Steering Tool Probe
High temperature Steering Probe used in Oilfield applications.
-
Probe size: 1.75” diameter X 49” long
-
Operating temperature: -20°C to 150°C or -20°C to 175°C
-
Pressure rating: 12,000 psi
-
Shock: 1000g, 0.5 msec, half sine
-
Vibration: 30g peak, 30 to 500 Hz
-
Maximum lateral displacement error: 2.6 ft. per 1000 ft. or conical uncertainty of ±0.15°
-
Survey resolution: 0.1°
-
Power: 36 – 40 VDC, 60 mA
-
Pressure and gamma upgradeable
-
Compatible with Tensor Steering Tool equipment
