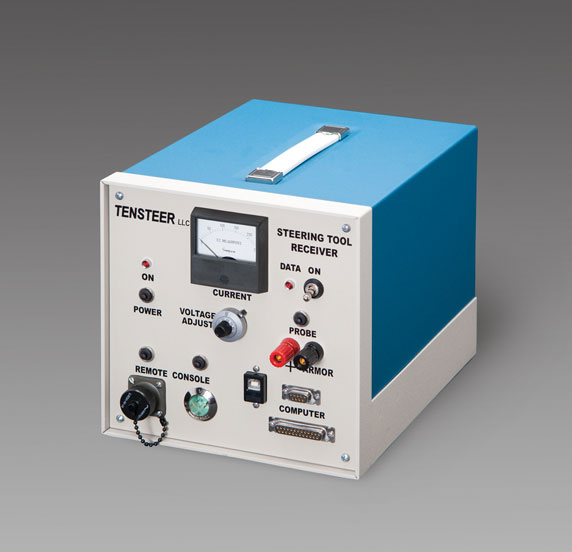

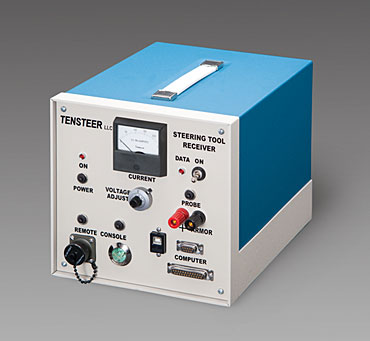

Steering Tool Receiver (STR)
Provides power to and receives data from the probe, transmitting data to the computer.
-
Physical dimensions: 8.2” X 8.3” X 11”
-
Weight: under 10 lbs
-
Operating temperature: –20°C to 70°C
-
Internal shock and vibration protection
-
Powered by 110 VAC, 60Hz or 220 VAC 50 Hz, 60W max
-
Three communication ports – USB, 9 Pin RS232, 25 Pin RS232
-
Compatible with Tensor STDC and future Tensteer Driller’s Consoles
-
Wireline current shown on analog meter
-
Power and data status shown on LED lamps
