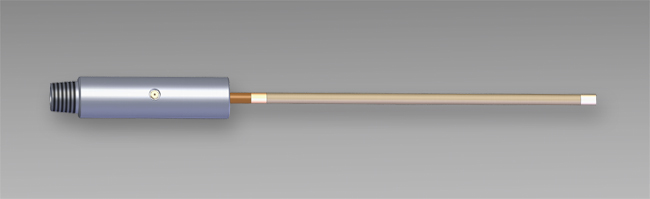

High Resolution Steering Tool Probe with Pressure Module
High Resolution Steering Tool Probe features an Annular Pressure Module for real-time monitoring that helps prevent frac-outs.
-
Combined probe size: 1.75” diameter X 55” long
-
Operating temperature: -20°C to 75°C
-
Annulus pressure measurement range: 0-500 psi operating, 2000 psi survival
-
Scale factor accuracy: 0.5% of full scale
-
Pressure measurement resolution: 0.2 psi
-
Can upgrade Tensor Probes
-
Mounts in Tensteer Pressure Port Sub (various configurations available)
